Model GANESHA 4X1 Machine Type Semi Automatic Drop Box Shuttle Looms Picking Under pick motion Loom Width 45”, 52”, 56”, 60”, 64”, 68”, 72”, 80” Working Width 2” less than loom width Reed Fast Shuttle Box 4×4, PICK N PICK Shedding motion Tappet, Dobby, Jacquard Weft Control Weft fork system or electronic infra-red filler system (optional) Warp Control Electrical or Mechanical warp Stop (optional) Let-Off Semi Positive attached / separate beam type / electronics Take-Up Seven wheel take-up mechanism Cloth roll VTM system / Spring Loaded (Optional) Applicable Yarns Synthetic, Silk, Polyester Lubrication Centralized lubrication system (Optional) Installed Power 0.33 Kw to 0.75 Kw

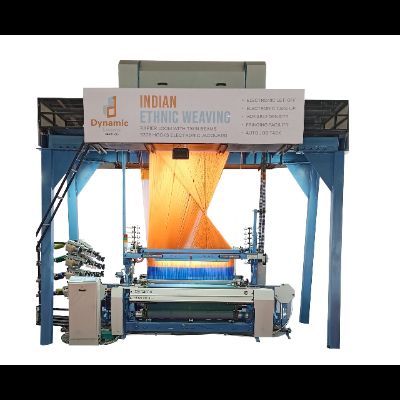

Model SHIVA DR II PLUS Machine Type Heavy Duty Flexible…

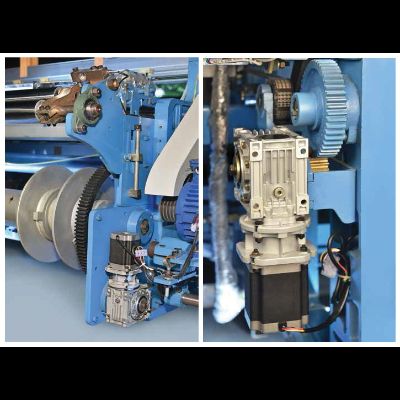

Mounting mechanism of Whip Roller and Load-cell are specifically designed…

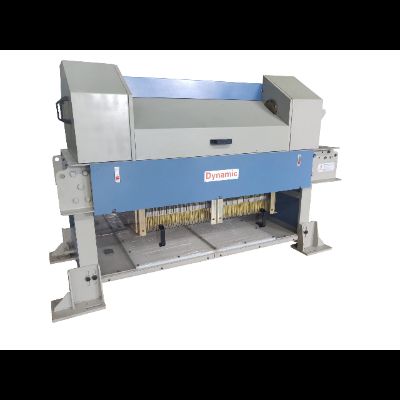

Type Electronic Jacquard DEJ22-2688 Applicable High-speed Rapier Machine up to…
Type Electronic Jacquard DEJ – 21 Applicable Shuttle Loom and…
Dynamic Autolooms India Pvt. Ltd. is a pioneer in the weaving industry since 1976. Serving the domestic as well as international markets through advanced rapier looms and shuttle looms. Dynamic’s products are an integration of the experience earned over decades with the proficiency of the modern era’s technologies. We cater to fabric manufacturers ranging from the apparel industry to technical and industrial textile manufacturers. We believe that the cost is long forgotten and only the quality is remembered forever. Dynamic Looms has been trusted since decades for changing the way fabrics are manufactured in different textile sectors. We have created a benchmark in the industry by providing latest Rapier and Shuttle Looms equipped with modernized technologies and streamlined production process.
